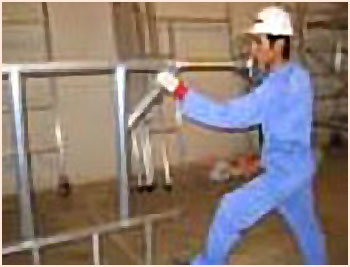

Step 1:
Insert the Adjustable Caster Wheel into frames. Tighten butterfly screw to interlock wheels and base. |
 |
| |
|
 |
| |
|

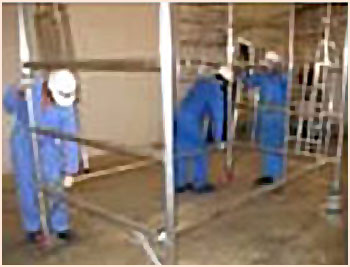

Step 2:
Lift the frames & immobilize wheels using brakes. Fit Horizontal Green Brace inside the frame (hook down) on the bottom cross rung of the first frame and at the opposite side. Bracings are locked automatically on exerting pressure on them. |
 |
| |
|
|
| |
|

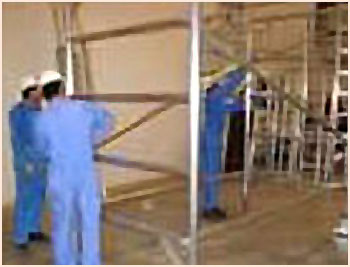

Step 3:
Add two Diagonal Red Braces on the opposite rungs to obtain a stable structure – make sure to keep the braces inline. |
 |
| |
|
|
| |
|

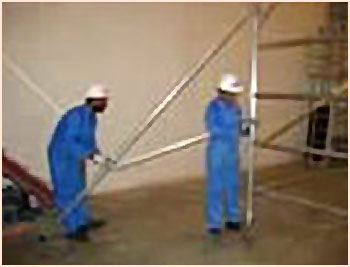

Step 4:
Fix Stabilizers at 450 angle.. Position and lock collars preferably just below the bars of the scaffold extension. Ensure that the stabilizer foot bears are properly on the ground |
 |
| |
|
|
| |
|

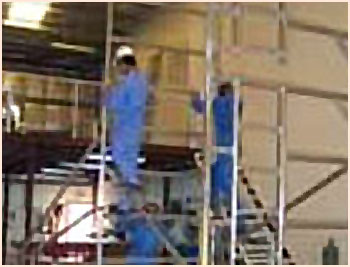

Step 5:
Add the next Frame & Ladder Frame on the top of the bottom frames. Add 2 more Horizontal Green Braces and 2 more Diagonal Braces on the last rung of the frames to make it more stable.
Step 5 is repeated for adding additional Frames & Ladder Frame |
 |
| |
|
|
| |
|

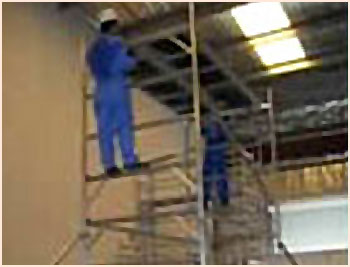

Step 6:
Install the Plain Platform and Trapdoor Platform in its level position. Lock the platforms at the two opposite ends. |
 |
| |
|
|
| |
|

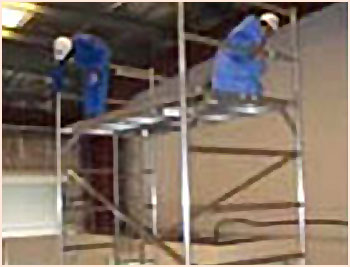

Step 7:
Fix the Guardrail at the end of the top frames and at the opposite side. |
 |
| |
|
|
| |
|

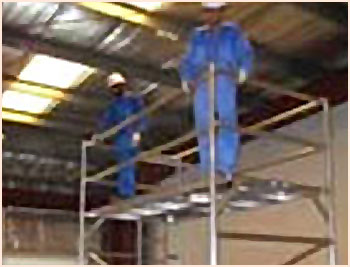

Step 8:
Fix the Horizontal Green Braces at the top most rung of each Guardrail and at the opposite side. |
 |
| |
|
|
| |
|

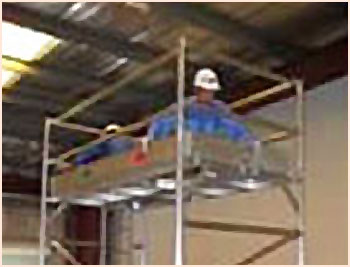

Step 9:
Position the Aluminium Toe Board against the floor of the Platform. |
 |
| |
|
